Spring

Gradle-Spring Project #2 - 정적 컨텐츠, MVC-템플릿, API

˙ᵕ˙ 2020. 10. 4. 16:47

정적 컨텐츠



Spring Boot Features

Graceful shutdown is supported with all four embedded web servers (Jetty, Reactor Netty, Tomcat, and Undertow) and with both reactive and Servlet-based web applications. It occurs as part of closing the application context and is performed in the earliest

docs.spring.io

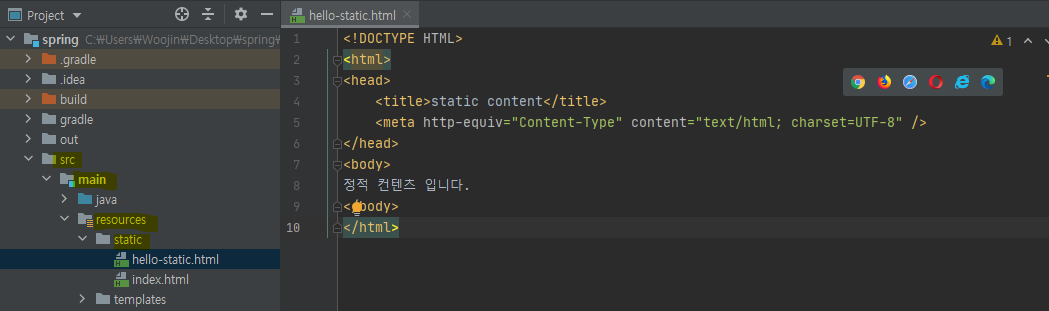

  • 스프링은 resources/static 폴더 아래에 있는 페이지를 찾아 정적 페이지로 보여준다.

<!DOCTYPE HTML>
<html>
<head>
 <title>static content</title>
 <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
</head>
<body>
정적 컨텐츠 입니다.
</body>
</html>
  • 실행
  • 파일명 그대로 접속할 수 있다.

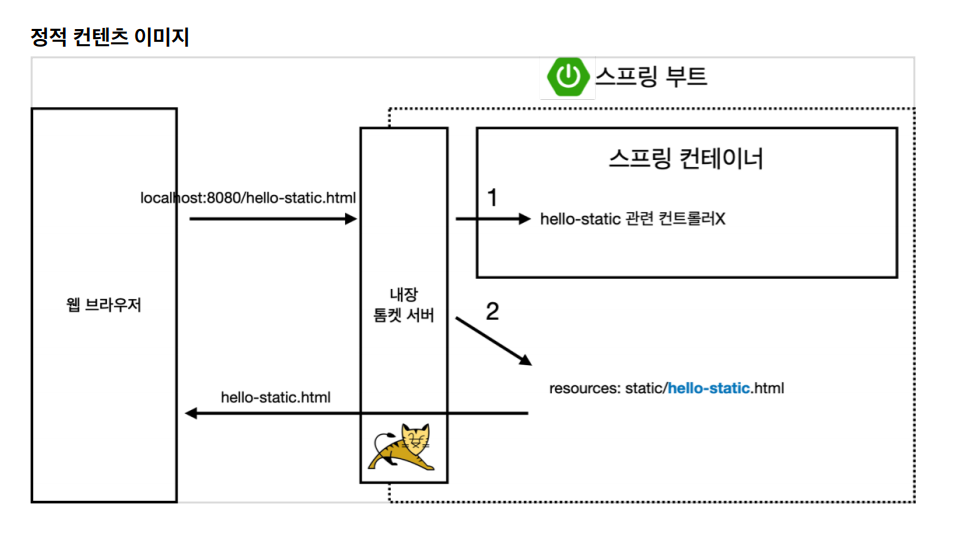

  • 스프링은 hello-static으로 요청이 들어오면 우선 관련 컨트롤러가 있는지 찾고, 없으면 정적 컨텐츠를 찾는다.



MVC와 템플릿 엔진

  • MVC : Model, View, Controller

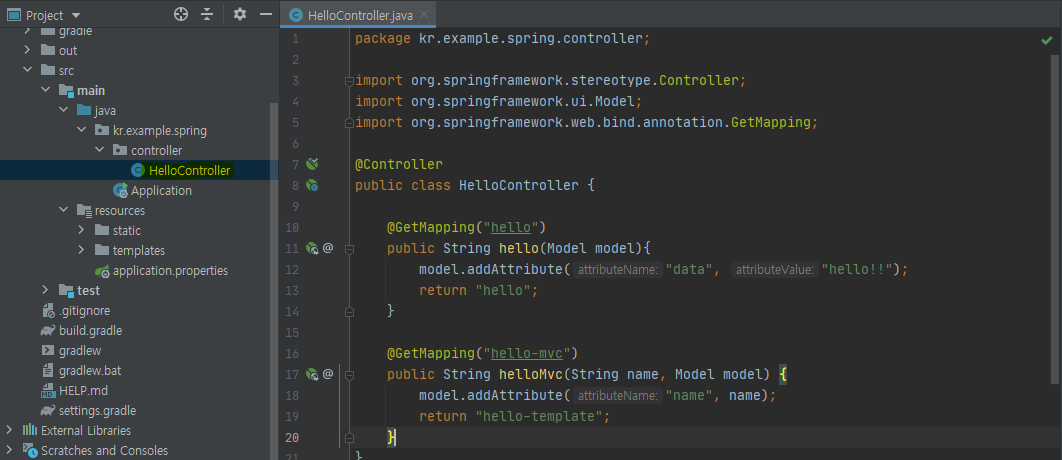

Controller

@Controller
public class HelloController {
   @GetMapping("hello-mvc")
   public String helloMvc(String name, Model model) {
   model.addAttribute("name", name);
   return "hello-template";
   }
}

View

<html xmlns:th="http://www.thymeleaf.org">
<body>
<p th:text="'hello ' + ${name}">hello! empty</p>
</body>
</html>

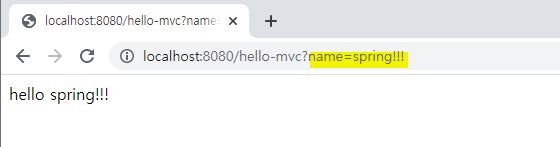

  • 실행
  • 컨트롤러에서 name 파라미터를 받아서 사용하고 있으므로 get방식으로 parameter를 넘겨준다

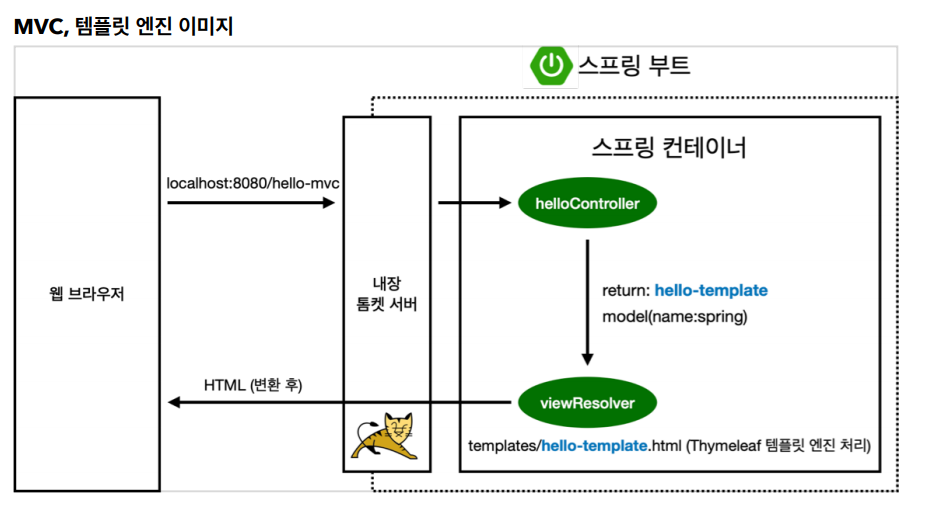

  1. hello-mvc?name=spring!!! 으로 요청이 들어온다
  2. 서버를 통해 컨트롤러에 전달
  3. 넘어온 name 파라미터를 받아서 처리 후 viewResolver 로 전달
  4. viewResolver는 view와 controller를 연결 해 준다.
  5. 넘어온 값들을 변환(Thymeleaf 템플릿 엔진 처리)해서 웹브라우저로 response

@Controller
public class HelloController {
   @GetMapping("hello-string")
   @ResponseBody
   public String helloString(@RequestParam("name") String name) {
   return "hello " + name;
   }
}

API

  • @ResponseBody
  • ViewResolver를 사용하지 않는다
  • return된 문자열 그대로 반환



  • 실행

  • @ResponseBody 객체 반환하기( 기본 json으로 반환 )

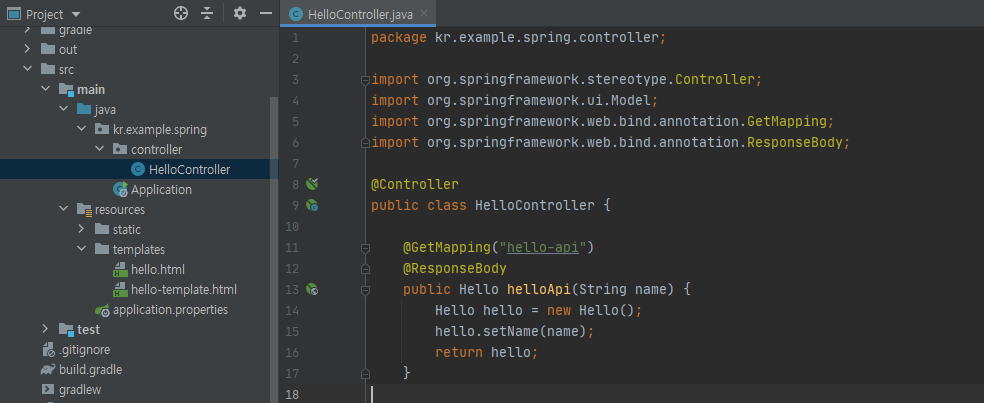

@Controller
public class HelloController {
   @GetMapping("hello-api")
   @ResponseBody
   public Hello helloApi(String name) {
   Hello hello = new Hello();
   hello.setName(name);
   return hello;
   }
   static class Hello {
     private String name;
     public String getName() {
     return name;
     }
     public void setName(String name) {
     this.name = name;
     }
   }
}
  • 실행
  • json 객체로 반환

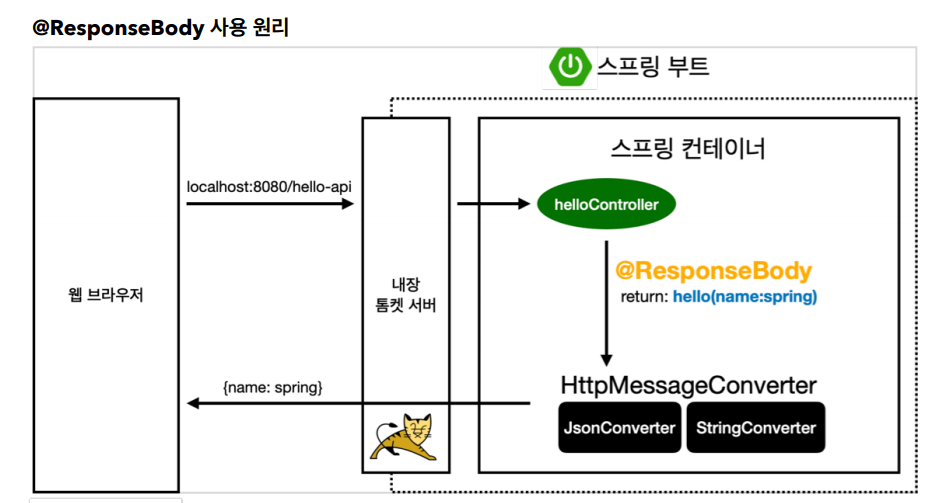

  1. hello-api 요청
  2. 서버를 통해 컨트롤러에 전달
  3. @ResponseBody 어노테이션이 있으면 ViewResolver 대신 HttpMessageConverter로 전달
  4. < HttpMessageConverter >
    • 기본 문자처리: StringHttpMessageConverter
    • 기본 객체처리: MappingJackson2HttpMessageConverter
    • byte 처리 등등 기타 여러 HttpMessageConverter가 기본으로 등록되어 있음
  5. 웹으로 전달
